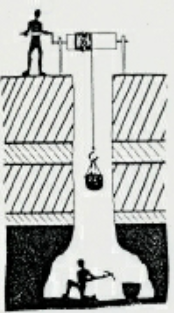

Pictured (left)  is a diagram showing how the mines were worked. Often the spoil from one Bellpit was thrown into a nearby abandoned shaft.

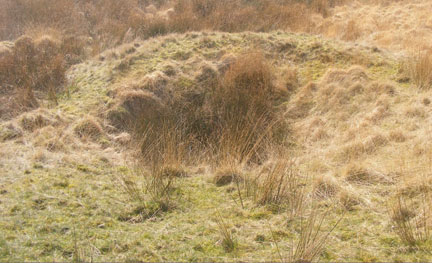

Pictured (Above) is one of the Bellpits adjacent to the bridleway.


Above is a diagram of a Drift Mine (local name - Breast Height or Day Eye). The Coal Authority refers to them a Adits.

TOP

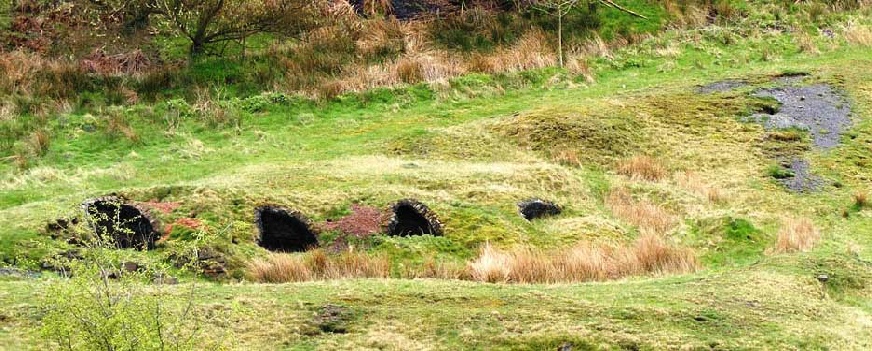

Near to Schofield Hall colliery were 4 Coke Ovens connected by a tramway. The ovens are pictured above.

 The mine itself is out the picture to the north (or left of picture).
